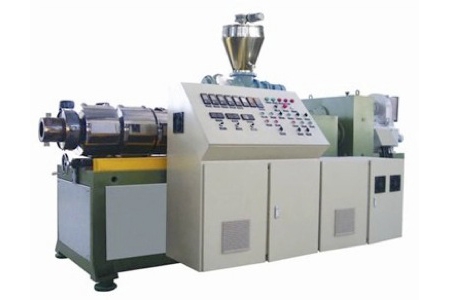

SJZ Conical Twin Screw Series

SJZ Series is a conical twin screw extruder.  It is mainly used in the production of PVC pipe and profiles.  The system is made up of a conical twin screw extruder, vacuum forming machine, haul off machine, cutter, and packing system.  The extruder and haul off machine are interconnected for continuous process control.  Below is a chart of available sized systems.

ModelSJZ-45/100SJZ-55/100SJZ-65/132SJZ-80/143SJZ-92/188
Screw Diameter (mm) 45/100 55/110 65/132 80/143 92/188
Screw Max Speed (rpm) 37 40 35 35 35
Screw Length (mm) 985 1200 1480 1850 2800
Main Motor Power (kw) 15 22 40 67 110
Output (kg/h) 70 150 280 400 550
Center Height (mm) 1000 1000 1050 1050 1200
Weight (kg) 2600 3500 4000 5000 7000
Dimensions (mm) 3200x1020x2400 3500x1050x2157 4230x1520x2450 4750x1550x2460 6700x1560x2820
